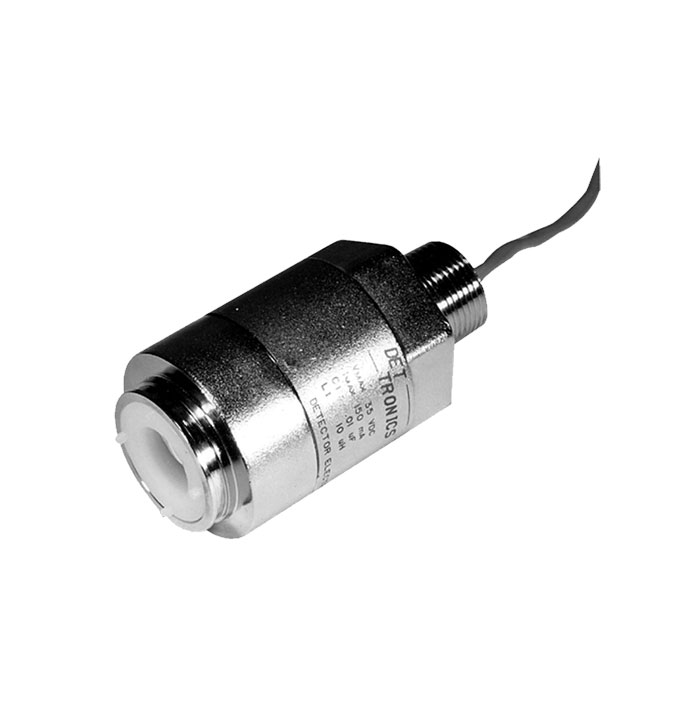

C7064E Toxic Gas Detector

The C7064E Electrochemical H2S Detector provides reliable detection and measurement of hydrogen sulfide (H2S) gas concentrations in hazardous industrial areas. The detector is designed for use with the FlexVu&Reg; UD10 display, Sensor Termination Box (STB) and other devices capable of monitoring a 4-20 mA input.

Features

Stainless steel housing is certified explosion-proof and EMI/RFI hardened
A hydrophobic filter provides protection in outdoor applications
Two-wire installation

Technical Specifications

Gas Measurement Range: 0 to 20, 50, or 100 ppm H2S depending upon the 005434-xxx electrochemical sensor specified
Output Signal: Two-wire, loop-powered 4-20 mA analog signal at 600 ohms maximum resistance with 24 Vdc applied
Voltage Requirements: 12-32 Vdc, 24 Vdc recommended
Temperature Range: Operating: –40°F to +122°F (–40°C to +50°C)
