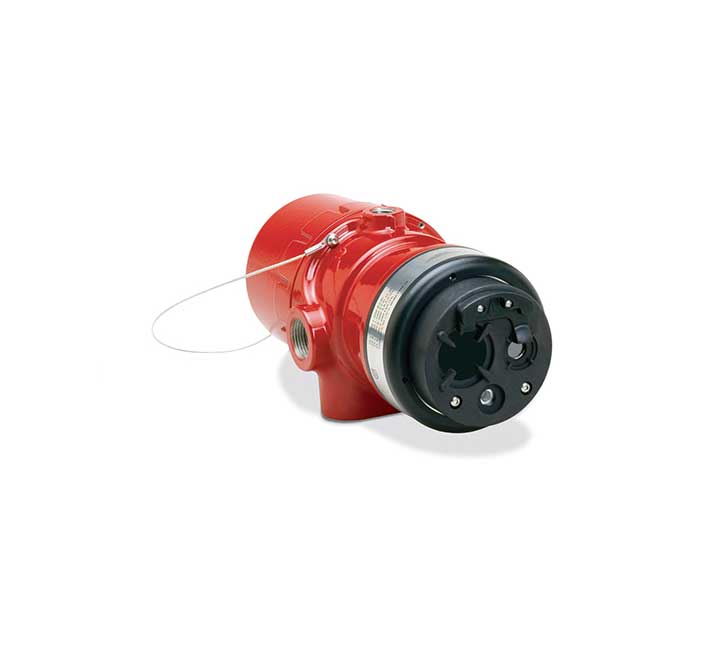

X9800 Single Frequency Infrared (IR) Flame Detector
Robust single frequency IR flame detector
- X-Series Flame Detectors with Pulse Output
- X2200, X5200, X9800 Safety Manual
- X-Series Flame Detector Mounting Arm and Collar Attachment
- NF-SSI Certified Addendum for X2200, X5200G and X9800 Flame Detectors – Instructions
- X9800 Single Frequency IR Flame Detector – Instruction Manual
- X9800 Single Frequency IR Flame Detector – HART Communication Addendum
Robust single frequency IR flame detector
The X9800 meets many third-party detection requirements and has field-proven detection capabilities, including immunity to many extraneous IR sources.
Features
- Multiple sensitivity modes
- Optical Integrity (oi®) performs automatic fail-safe checks every 60 seconds
- Heated optics for adverse environments and weather
- Data logger with event time and date stamping (1500 events)
- Suitable for both indoor and outdoor applications
- Meets NFPA 33 under 0.5-second response requirement (available on specific models)
Technical Specifications
- Multiple communication protocols, including 0-20 mA, relay, Modbus, HART, FDT®/DTM and Eagle Quantum Premier® (EQP) safety system
- Uses Time Domain Signal Analysis (TDSA) to minimize false alarms
- RFI and EMC Directive compliant
- Certified Sil 2 capable
- Copper-free aluminum or 316 stainless steel enclosure with NEMA 4X and IP66/IP67 rating
