Det-Tronics- United Technologies

Fire & Gas Safety Systems Overview

The Eagle Quantum Premier® (EQP) Fire and Gas Safety System is approved to FM 3010 in accordance with NFPA 72®: National Fire Alarm and Signaling Code, 2013 Edition. The EQP is also certified SIL 2 capable and qualified for Safety of Life at Sea (SOLAS).


FM-Approved Ex-mark SIL2-capable encompass-product-partner NFPA

An effective fire and gas safety system is an integrated set of inputs and outputs that meets life safety requirements and can be used for process monitoring. The EQP fire and gas safety system fulfills this definition and is listed and certified for both fire & gas control and releasing. Note: Listings and certifications vary by application and the requirements of authorities having jurisdiction (AHJ). Contact your local authorized sales representative for more information.


Robust and reliable, the EQP safety system uses a distributed topology suitable for applications that require a hazardous location rated protection system. How harsh? The EQP safety system is certified to be installed in Class I, Div 2/Zone 2 hazardous locations.


The EQP provides the following for hazardous and non-hazardous locations:

  • Flame and gas detection
  • Alarm signaling
  • Fault notification
  • Extinguishing agent release control
  • Flexibility to connect to both Det-Tronics and third-party devices
  • Supports flamegassmoke and heat detectors in a certified system configuration
  • Capable of supporting redundant fault-tolerant communication loop, as well as point-to-point designs
  • Provides continuous real-time safety system status and diagnostics allowing operators to know system health plus operational and maintenance requirements
  • Easily integrated with PCS, DCS, SCADA and PLCs via multiple communication protocols
  • Available in a pre-engineered listed system with enclosures rated for ordinary and hazardous locations

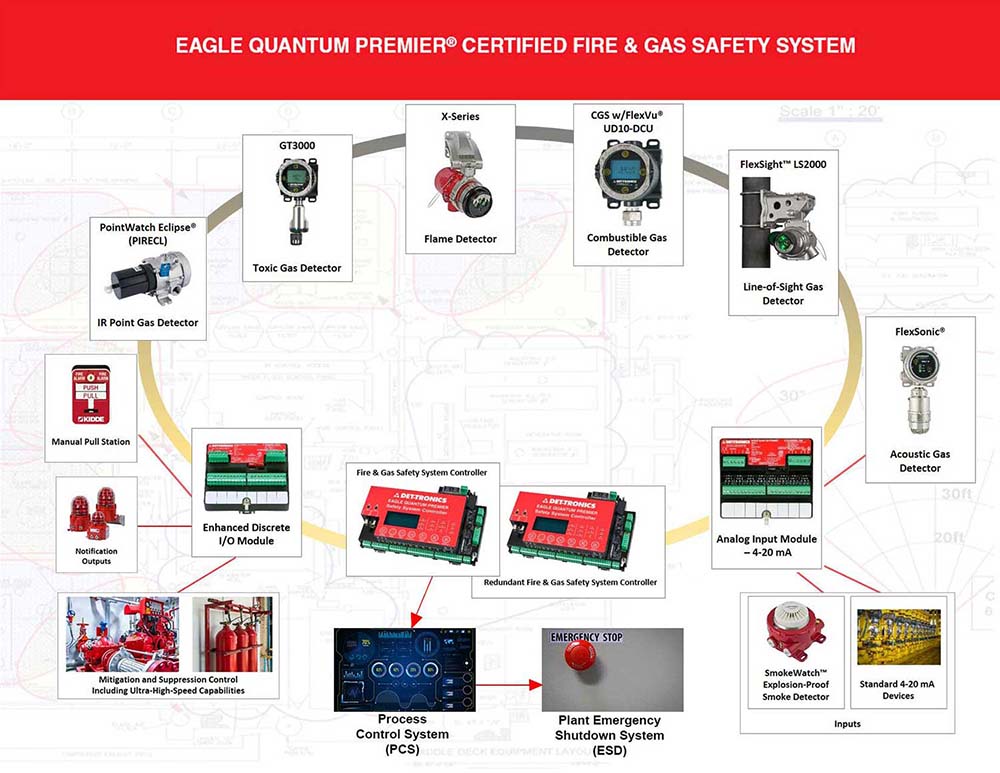

Loop Diagram Image
