Gas Sampling Systems

Gas detection in the most demanding applications

Safety in the harshest environments

We have developed a revolutionary method for gas detection focused on providing equipment that operates with a high degree of reliability and without supervision.

No other available technologies can handle the same task as the our Omicron gas sampling system.

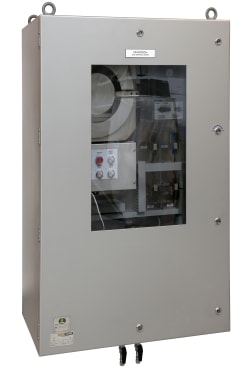

Omicron direct gas sampling system is specially made for “direct detection” in harsh areas such as shale shaker rooms snd similar.

Gas sampling is a good solution for gas detection in areas where the normal installation of gas sensors is not possible.

Features

• Dual sampling channels for reliable detection.
• Can be mounted on existing gas detector flange minimizing installation cost
• Multiple gas detectors for voting and detecting different gases (HC/H2S)
• Sample gas flow alarm
• System can operate with one, two or three sensors.
• Sample probe can be mounted directly into existing GD10 duct flange
• Sample gas inlet temperature up to 70 °C (higher temperatures on request)
• Standard software configuration allow up to 50 m sampling tube
• Sampling tube recommended for installation is 8 x 1 mm or 10 x 1,5 mm

Our sister company Autronica offers the Omicron direct gas sampling system.

Contact your Det-Tronics authorized local sales representative with any questions concerning applications, specifications, pricing and more.
