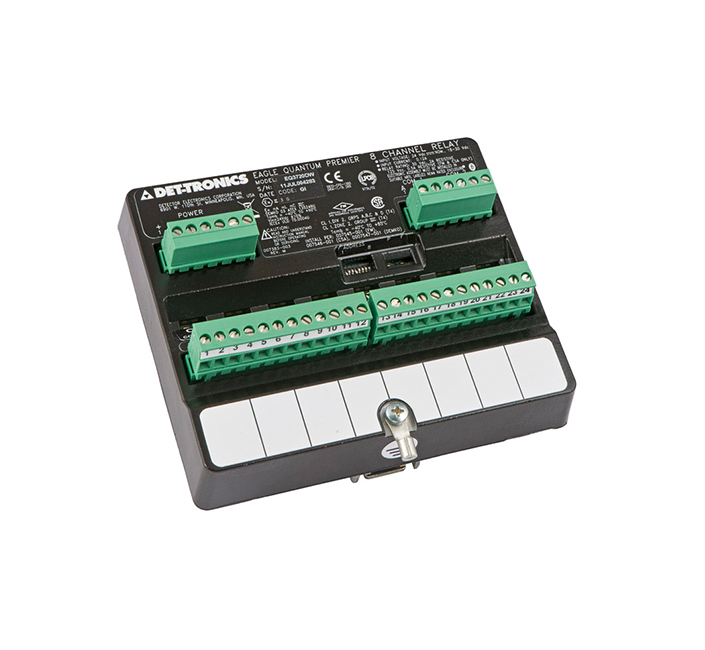

8-Channel Relay Module

ATEXCSAEU Conformity (CE)Det-Tronics Point IR Termination Box (PIRTB) FM ApprovalIECEx

Expand the relay capacity of your EQP system

The 8-Channel Relay Module is engineered to expand the output capacity of the Det-Tronics Eagle Quantum Premier® (EQP) fire and gas safety system. The unit provides eight (8) relay output channels for use with non-supervised 24 Vdc devices (PLCs, fans, dampers, and others). The module can be panel or DIN rail mounted to meet your installation requirements.


  • Monitors eight (8) independent relay output channels
  • Individual channel LEDs indicate Active and Fault status
  • Provides remote output capabilities via LON/SLC
  • Programmable normally energized/de-energized contacts
  • Programmable failed state on loss of communication with controller (Fail on / Fail off / Hold last state)
  • Plug-in wiring connectors
  • Power LED display

Technical Specifications

  • Input voltage: 24 Vdc nominal, 18 to 30 Vdc
  • Relay contact rating: 2A (resistive) at 30 Vdc maximum, 0.5A (resistive) at 125 Vac (FM and CSA only)
  • Output style: Type "C" relay (normally open/normally  closed)
  • Response time: Output actuates in < 0.15 second after acknowledging an alarm command
  • Panel or DIN rail mounting
  • RFI and EMI hardened
