Ultra-High-Speed Fire Detection and Releasing Systems (FDRS) Ancillary Components

The following ULTRA-FDRS ancillary components are available to meet your project's specific requirements.

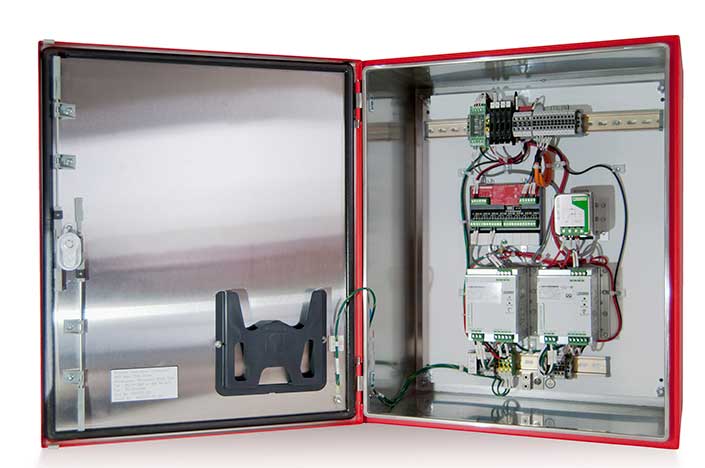

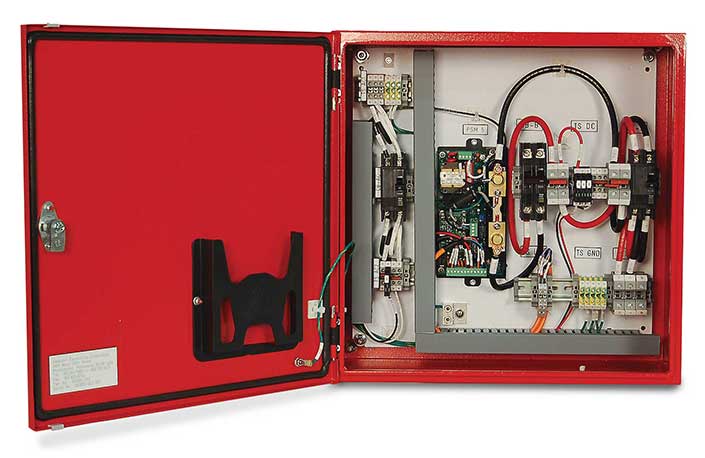

EQ3900G Power Distribution / Monitoring Enclosure Solution

This wall-mounted enclosure accommodates the Power Supply Monitor, terminal blocks, relays, circuit breakers, and fuses as physical space allows.

• Red painted (RAL 3020) steel enclosure
  • 20”(H) x 20”(W) x 8”(D) (508mm x 508mm x 203mm)
  • Front Access Door with Locking Key Handle
  • Passive Venting
  • NEMA 4, IP66
  • No Viewing Window or Operators
• One EQ2100 PSM Power Supply Monitor installed

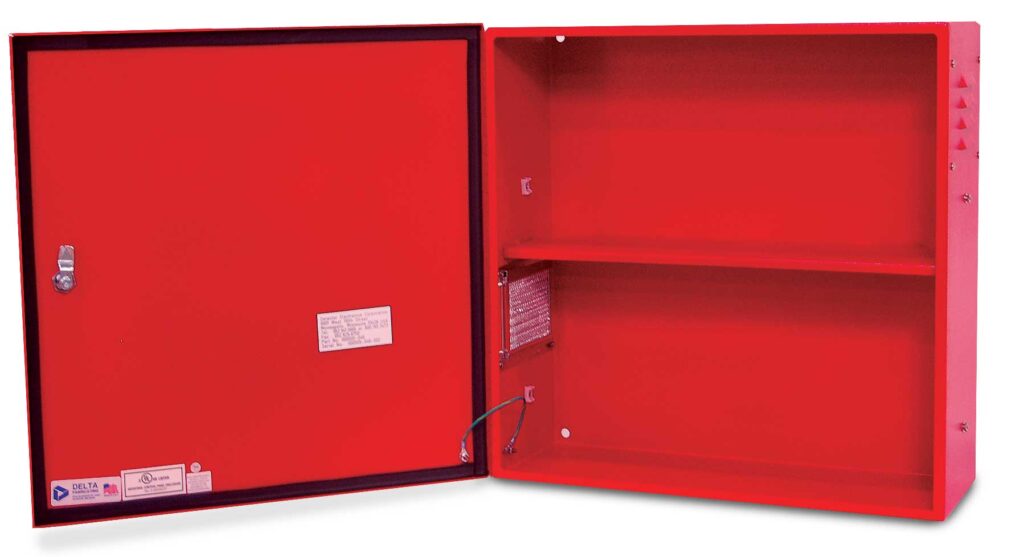

Backup Battery Enclosure

This wall-mounted enclosure holds up to four 12 Volt, sealed lead acid, top-post, 100AH batteries.

• Red painted (RAL 3020) steel enclosure
  • 30” (H) x 30” (W) x 8” (D) (762mm x 762mm x 203mm)
  • One shelf
  • Latching front access door
  • Filtered vents
  • NEMA 1

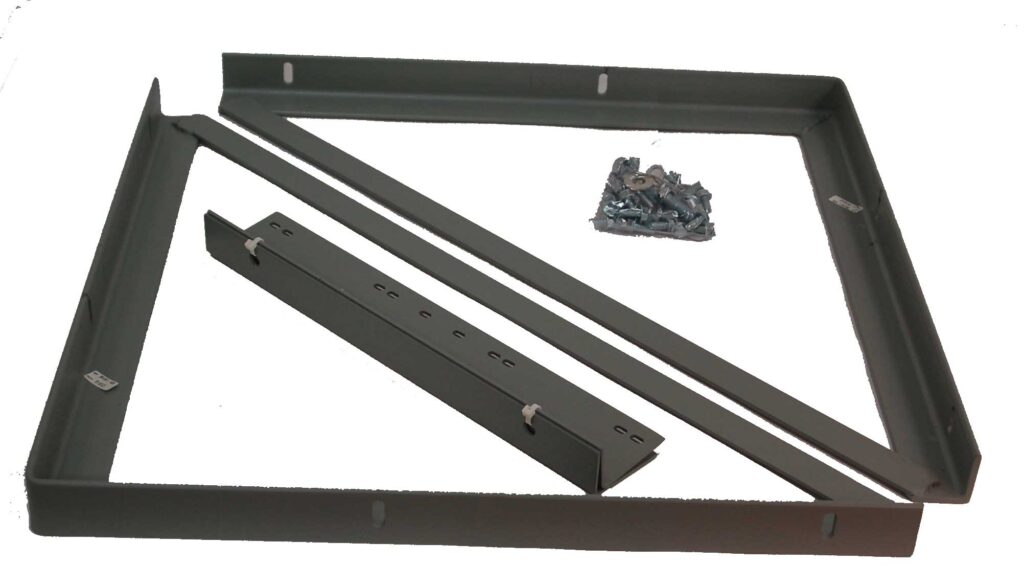

Power Supply Wall Mount Bracket

Painted steel wall mount bracket for use with EQ21xxPS series power supplies/battery chargers.
