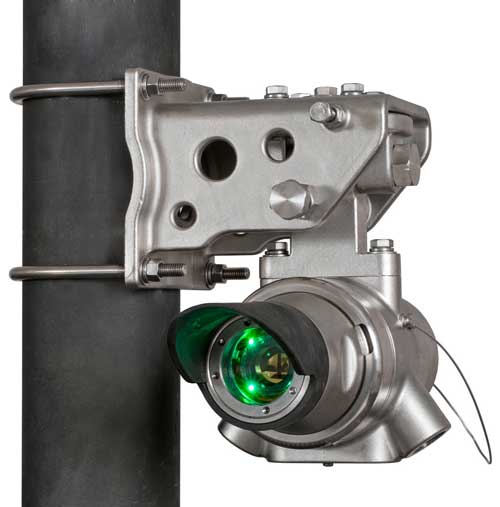

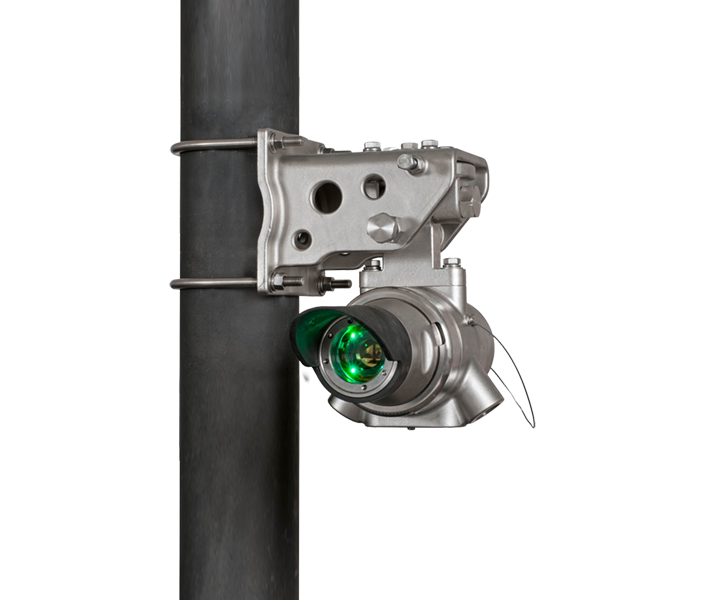

FlexSight™ LS2000 Line-of-Sight (LOS) Infrared Hydrocarbon Gas Detector

ATEXCSAEU Conformity (CE)Det-Tronics Point IR Termination Box (PIRTB) FM ApprovalIECExSIL 2 Certification

Outstanding LOS detector - the LS2000

The Det-Tronics FlexSight™ LS2000 is designed to meet challenging hydrocarbon gas detection applications. This detector delivers an impressive field of view (FOV), advanced housing design, simplified mounting and breakthrough alignment tolerance, all in a package designed with ease of maintenance, reliability and low cost of ownership in mind.

Features

  • Outstanding misalignment tolerance for high vibration and wind applications
  • Third-party documented +/-0.8 degree misalignment tolerance (+/- 2m tolerance at 120m range)
  • Performance approved with 95% obscuration
  • Heated optics for adverse environments
  • Simplified alignment and mounting reduces installation time
  • Data logger with event time and date stamping
  • exida® safety award winner

Technical Specifications

  • Multiple communication protocols, including 4-20 mA, relay, Modbus, HART, FDT®/DTM and Eagle Quantum Premier® (EQP) safety system
  • Continuous monitoring of combustible hydrocarbon gas concentrations in the range of 0 to 5 LFL-meters, over a distance of 5 to 120 meters
  • Highly visible diagnostic LED for local alarm and simple fault identification
  • HART 7, EDD, and AMS capable

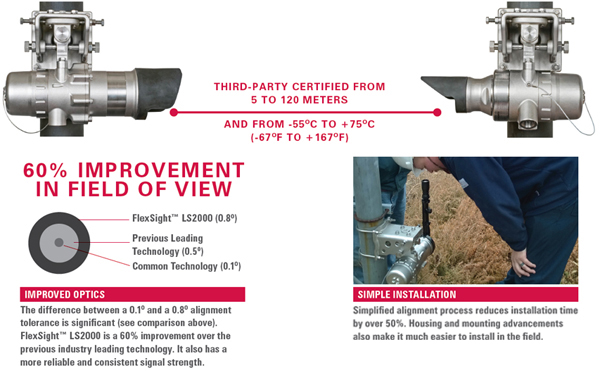

Impressive range and FOV

LS200 FOV Graphic

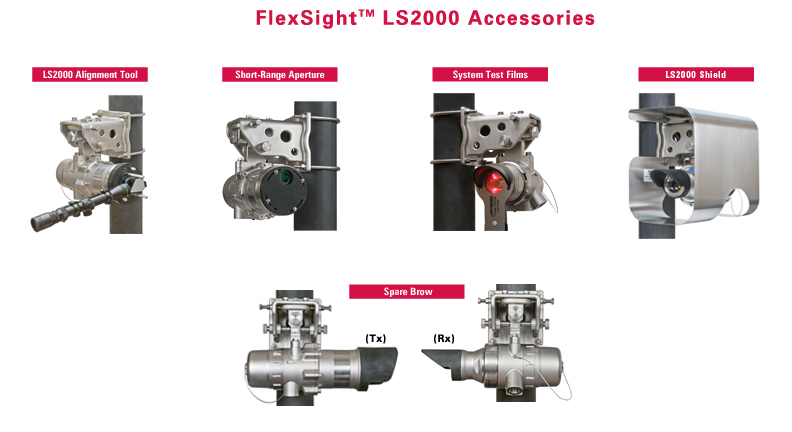

Accessories to simplify installation, calibration and shielding of your detector

LS2000 Accessories

Note: The LS2000 replaces the Open Path Eclipse® (OPECL) IR gas detector.
