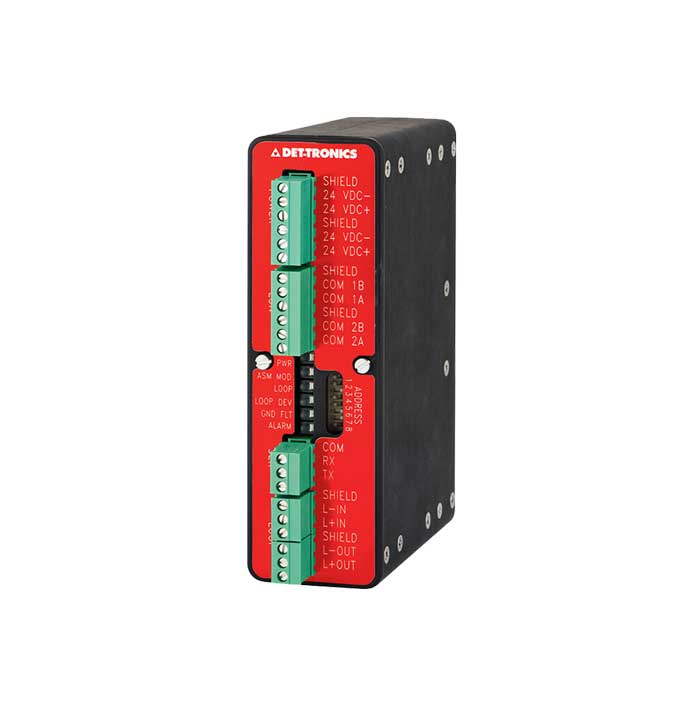

Addressable Smoke Module (ASM)

ATEXCSAEU Conformity (CE)Det-Tronics Point IR Termination Box (PIRTB) FM ApprovalIECExSIL 2 Certification

Added the power of addressable devices to your system

When you add the Addressable Smoke Module (ASM) to your Eagle Quantum Premier® (EQP) safety system, you enable the system to take advantage of addressable devices that significantly improve the accuracy of detection and alarm reporting in non-hazardous areas.

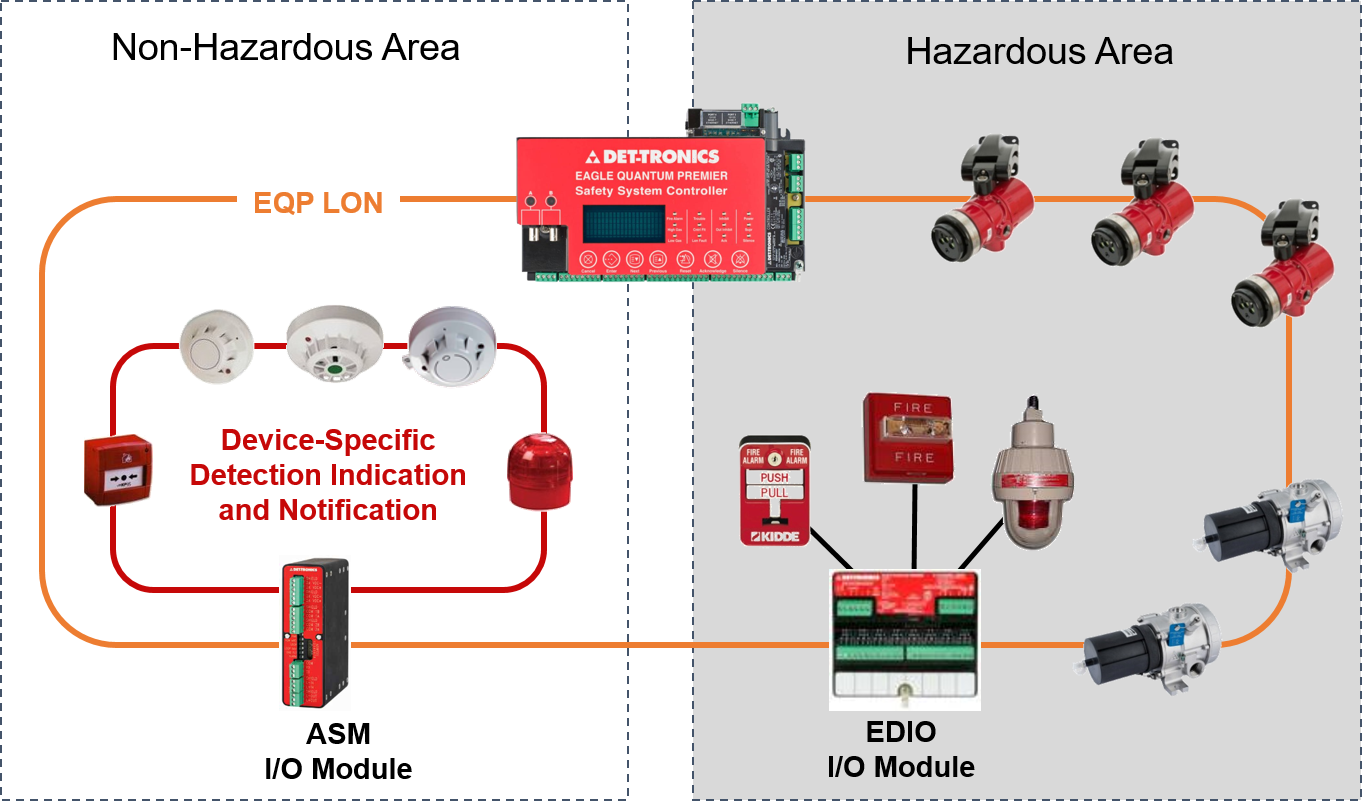

EQP_ASM_System_Architecture

Features

  • Provides power and communications to 100 marine-rated addressable devices
  • Each EQP Controller can support up to 10 ASMs
  • Provides remote I/O capabilities via LON/SLC
  • LEDs for easy annunciation of power, faults and an active device on the loop
  • Monitor hazardous and non-hazardous areas with one integrated system
  • ASM alarm and fault conditions are logged in the EQP controller

Technical Specifications

  • Operating temperature range: –40°C to +85°C (–40°F to +185°F).
  • DIN rail mounting
  • Plug-in wiring terminals accept four (4) different wire sizes from 4 to .75 mm2 (12 to 18 AWG)
  • RFI and EMI hardened
  • Supports Apollo Discovery and XP95 models
  • Intrinsically safe capability
  • Certified SIL 2 capable
For information on adding fire detection devices to existing EQP safety system installations, please contact your local authorized sales representative.
Det-Tronics Apollo Discovery® logo for ASM

Learn more about Apollo Discovery® and X95 products here.
